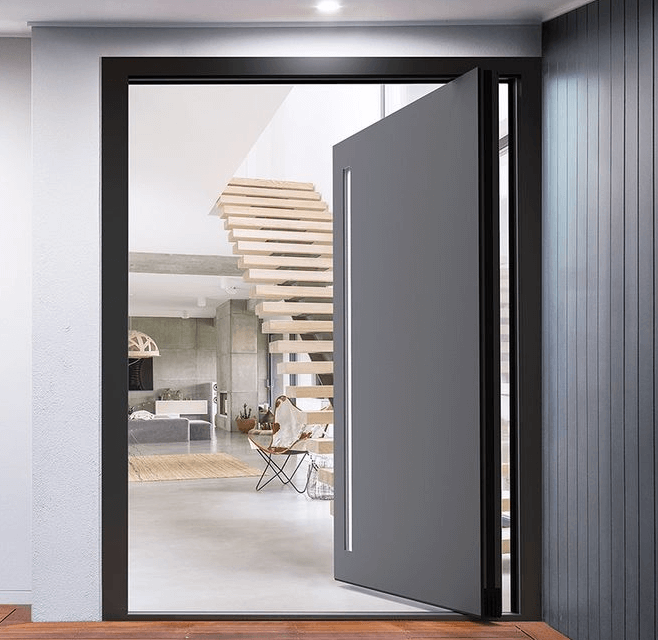

Cortizo Millennium Pivot is more than a door — it is an architectural statement. The system breaks conventional stereotypes about what a home entrance should look like. Instead of classic hinges, it uses a rotation mechanism on a vertical axis offset from the sash edge. This technical solution allows weight redistribution and the creation of truly gigantic structures up to 2.1 metres wide and 3 metres high, which nonetheless operate with featherlight ease.

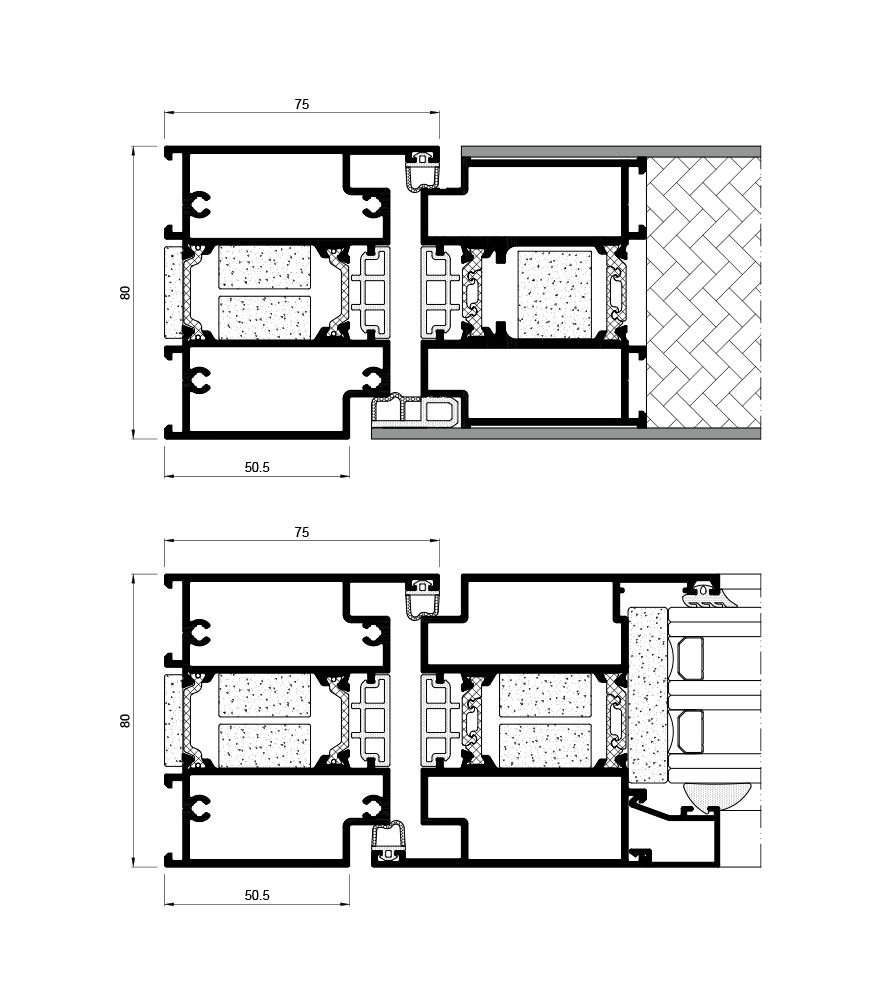

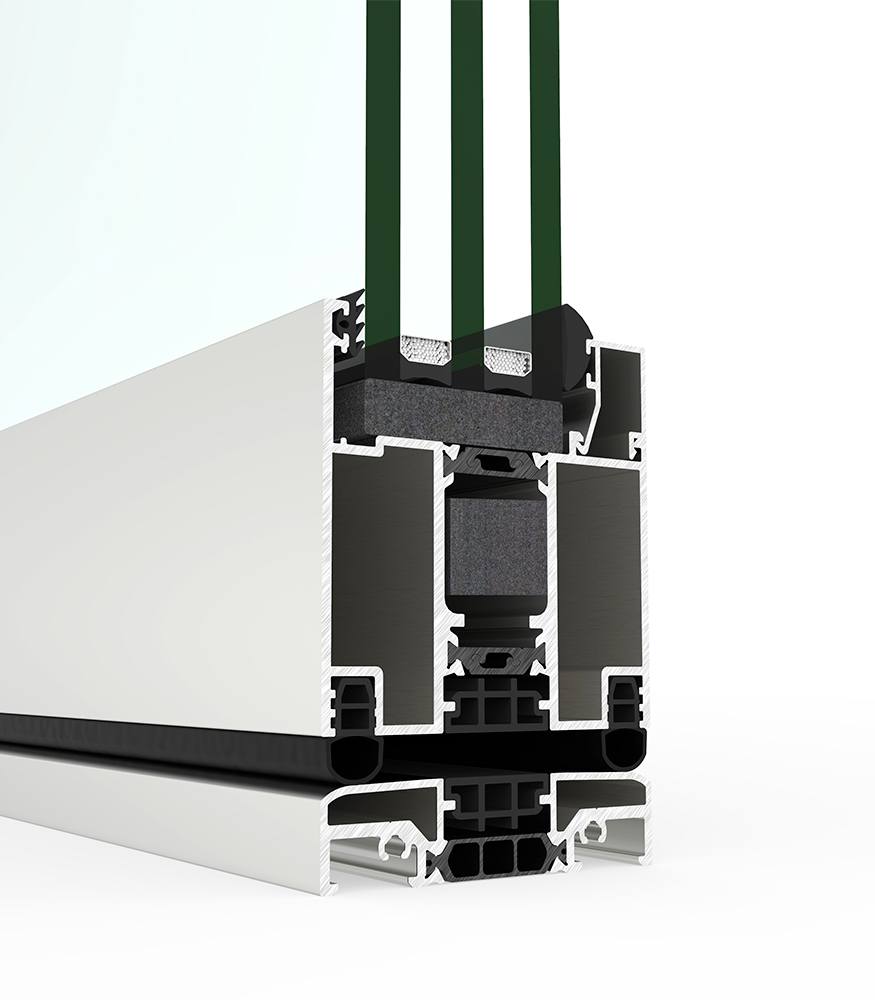

At the heart of the system lies a powerful profile with 80 mm installation depth and high thermal insulation values, making it ideal for premium private residences. The Millennium Pivot design is a celebration of minimalism: the option for concealed handles with LED lighting, finishing panels of stone, ceramic, or aluminium, and full coplanarity (sash flush with frame). This is the choice for those who want to impress guests before they even step inside.
Technical Specifications
Avant-garde pivot door on an offset axis. Allows creation of entrance groups of monumental dimensions (up to 3 metres high) with uniquely smooth operation.
System structural parameters:
Glazing options:
Maximum dimensions and security:
Certified performance:
Avant-garde pivot door on an offset axis. Allows creation of entrance groups of monumental dimensions (up to 3 metres high) with uniquely smooth operation.
For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.
Alternative solutions from other manufacturers
Side by side
How Cortizo Millennium Pivot stacks up against the closest matches from other brands.
| Specification | Cortizo Millennium PivotThis profile | Schüco AD UP 75 | Kömmerling 76 Puerta | Rehau Geneo 86 Door |
|---|---|---|---|---|
| Brand | Cortizo | Schüco | Kömmerling | REHAU |
| Material | Aluminium | Aluminium | PVC | PVC |
| Profile depth | 80 mm | 75mm | 76 mm | 86mm |
| Chambers | 3 chambers | 5 chambers (AD UP) | 5 chambers | 6 chambers |
| Glass unit, max | up to 60 mm | up to 63mm | up to 50 mm | up to 53mm |
| Thermal (Uw) | ≤ 0.79 | 1,1 | ≤ 0,79 | 0.82 |
| Sound (Rw, dB) | ≈ 38 Rw(dB) | ≈43 Rw(dB) | ≈ 47 Rw(dB) | ≈ 47 Rw(dB) |
See all door profiles compared.
Open full comparisonLeave a Review
Find out what people are saying about it
No reviews yet. Be the first!
FAQs
The main difference is the axis of rotation. A conventional door hangs on hinges at the side, while a Pivot rotates on pins in the floor and ceiling, offset from the edge. This changes the movement trajectory: part of the sash swings inward while the main part swings outward, creating a wide and striking passage.
Millennium Pivot is typically fitted with automatic electromechanical locks. When the door closes, the bolts extend automatically. It can be opened with a key, code, card, fingerprint, or via a smartphone app.
Since Pivot doors do not have a classic threshold with a seal (to avoid obstructing rotation), airtightness is ensured by two automatic drop-down thresholds (guillotines). When the door closes, they lower to tightly seal the gap between the floor and the sash.
It is important to consider that when opening, the rear part of the sash (the part behind the rotation axis) swings into the room or opening. Typically, the axis is offset by 1/3 or 1/4 of the width. This space must be kept clear of furniture or rugs.
Absolutely. The 80 mm profile, aluminium cladding sheets, and robust frame make the door panel extremely rigid. Combined with multi-point locking, such a door represents a serious barrier against intruders.
Installing a Pivot door is more complex than standard installation and requires high qualifications. Special attention is paid to floor preparation, as the bottom support bears the entire weight of the structure (up to 250 kg) and must be perfectly secured to the concrete base.
