Schüco AD UP 75 (Aluminium Door Universal Platform) is a complete reinvention of the aluminum door concept. Schüco engineers abandoned the classic thermal bridge design in favor of a 5-chamber symmetrical construction where aluminum is combined with composite materials.
This structure gives the door incredible stability (the sash does not deform from heat) and high airtightness thanks to three sealing circuits. This is the ideal choice for a front entrance to a private home where both prestigious aesthetics and reliable protection from harsh climate are important.
Technical Specifications

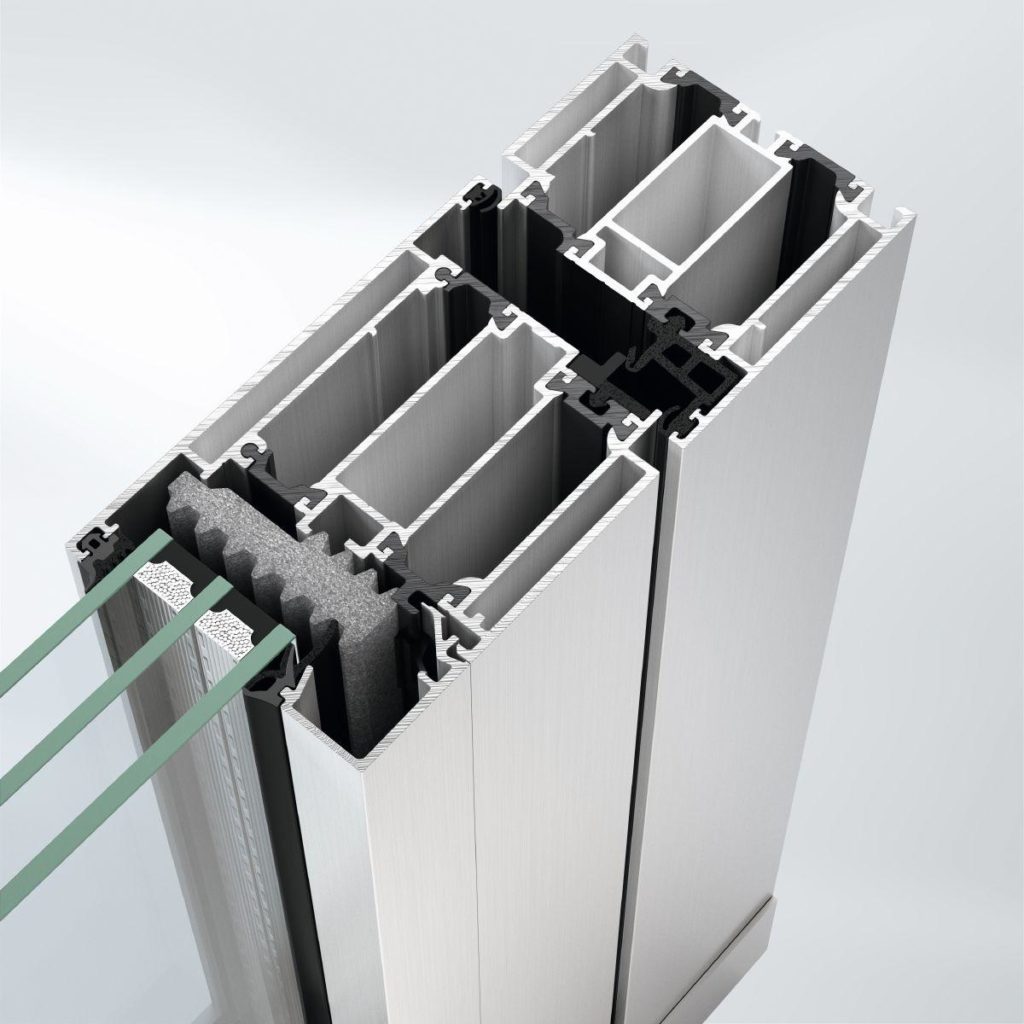

Universal aluminum door platform. Revolutionary 5-chamber profile construction with 75 mm depth and three-level sealing for maximum airtightness.
System structural parameters:
Infill options:
Certified characteristics:
Universal aluminum door platform. Revolutionary 5-chamber profile construction with 75 mm depth and three-level sealing for maximum airtightness.
For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.
Alternative solutions from other manufacturers
Side by side
How Schüco AD UP 75 stacks up against the closest matches from other brands.
| Specification | Schüco AD UP 75This profile | Cortizo Millennium Plus 70 | Veka Softline 82 Door | Kömmerling AluClip Puerta |
|---|---|---|---|---|
| Brand | Schüco | Cortizo | VEKA | Kömmerling |
| Material | Aluminium | Aluminium | PVC | PVC |
| Profile depth | 75mm | 70 mm | 82 mm | 83.5 mm |
| Chambers | 5 chambers (AD UP) | 3 chambers | 7 chambers | 5 chambers |
| Glass unit, max | up to 63mm | up to 54 mm | Panel / up to 52mm | up to 50 mm |
| Thermal (Uw) | 1,1 | ≤ 0.9 | 1.1 | ≤ 1.1 |
| Sound (Rw, dB) | ≈43 Rw(dB) | ≈ 38 Rw(dB) | ≈ 44 Rw(dB) | ≈ 44 Rw(dB) |
See all door profiles compared.
Open full comparisonLeave a Review
Find out what people are saying about it
No reviews yet. Be the first!
FAQs
Aluminium Door Universal Platform. This is a new generation of Schüco systems designed to replace the classic ADS series with better statics and manufacturability.
Yes, thanks to the wide thermal break zone with foam inserts and middle sealing circuit. The Ud coefficient can reach 1.1 W/m²K with glazing and less than 0.8 W/m²K with a warm panel.
AD UP is a more modern design. It has 5 chambers (instead of 3), better maintains geometry at large sizes, has a simpler hardware mounting system, and improved airtightness.

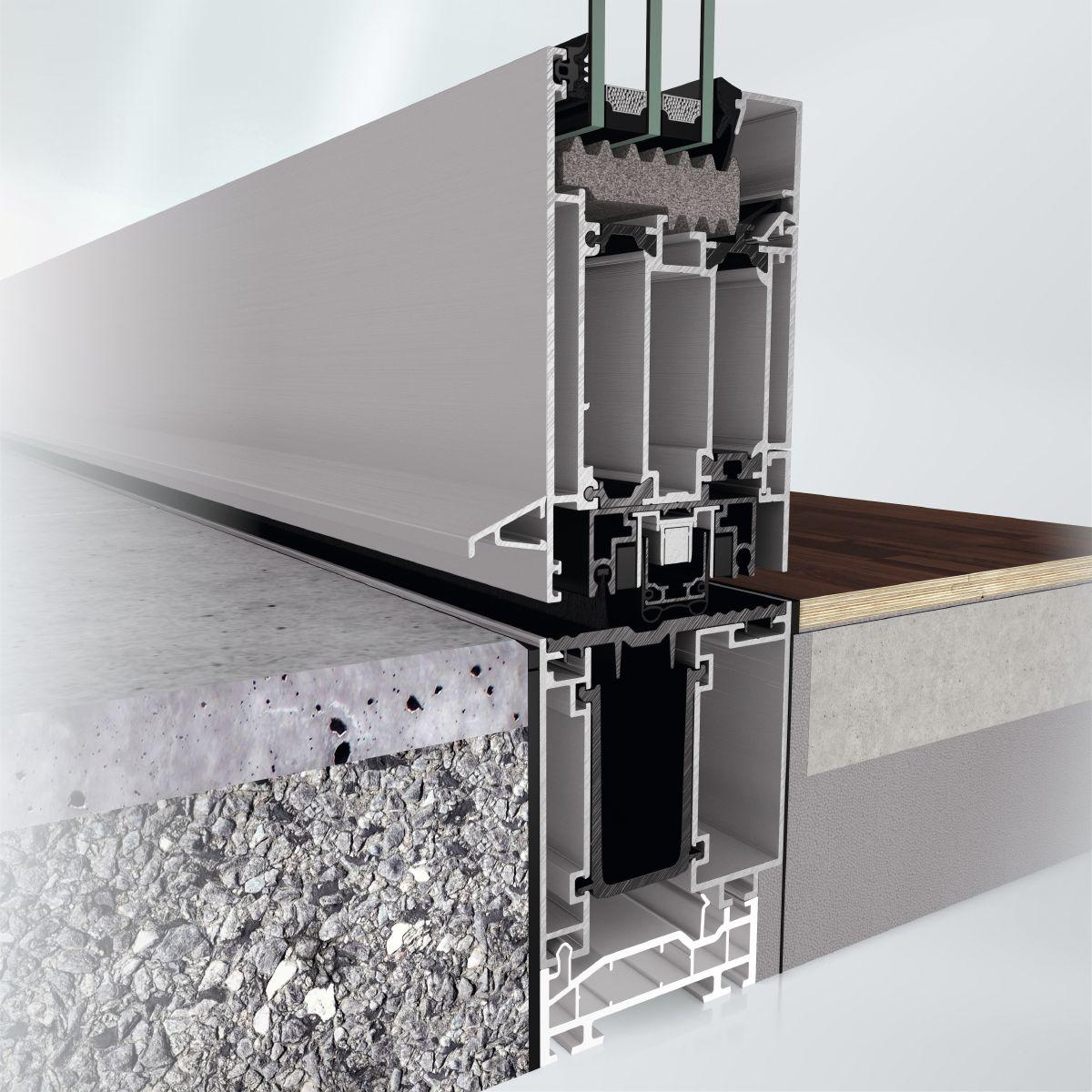

An aluminum threshold with thermal break is used, which can be mounted either standard (20 mm height) or fully recessed into the floor for barrier-free access.
Yes, AD UP 75 supports fully concealed roller hinges (100° opening angle) or surface-mounted hinges supporting sashes weighing up to 200 kg.
The system has been tested to RC3 burglar resistance class. This means the door withstands prolonged break-in attempts using heavy tools (crowbar, screwdrivers, wedges).
