UW- value 0.82

Aviation technology in your home. Rehau Geneo is the world's first door system made from the high-tech material RAU-FIPRO. This fiberglass-based composite provides record-breaking strength and lightness, unattainable with conventional PVC.

Thanks to the absence of steel reinforcement (which acts as a thermal bridge) in most configurations, Geneo provides near-perfect thermal insulation. It's the choice of perfectionists who value innovation, hidden hinges, and uncompromising energy efficiency.

Technical Specifications

Details

Revolutionary fiberglass RAU-FIPRO entrance door. 86 mm depth, Passivhaus certified for maximum energy efficiency. Steel-free reinforcement technology.

Energy rating
A++
Door type
Entrance door
Profile depth
86mm
Material
RAU-FIPRO X
Profile chambers
6 chambers
Panel thickness
up to 53mm
Hinges
Hidden
Thermal protection
Uw ≤ 0.82 W/(m²·K)
Sound insulation
≈ 47 Rw(dB)

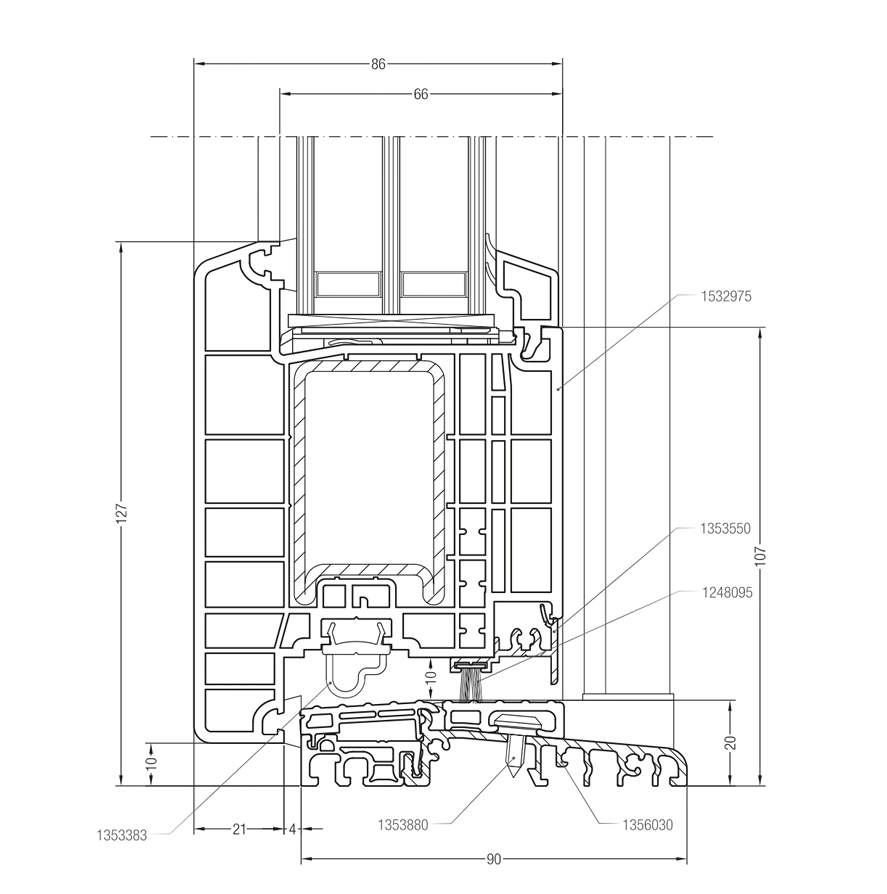

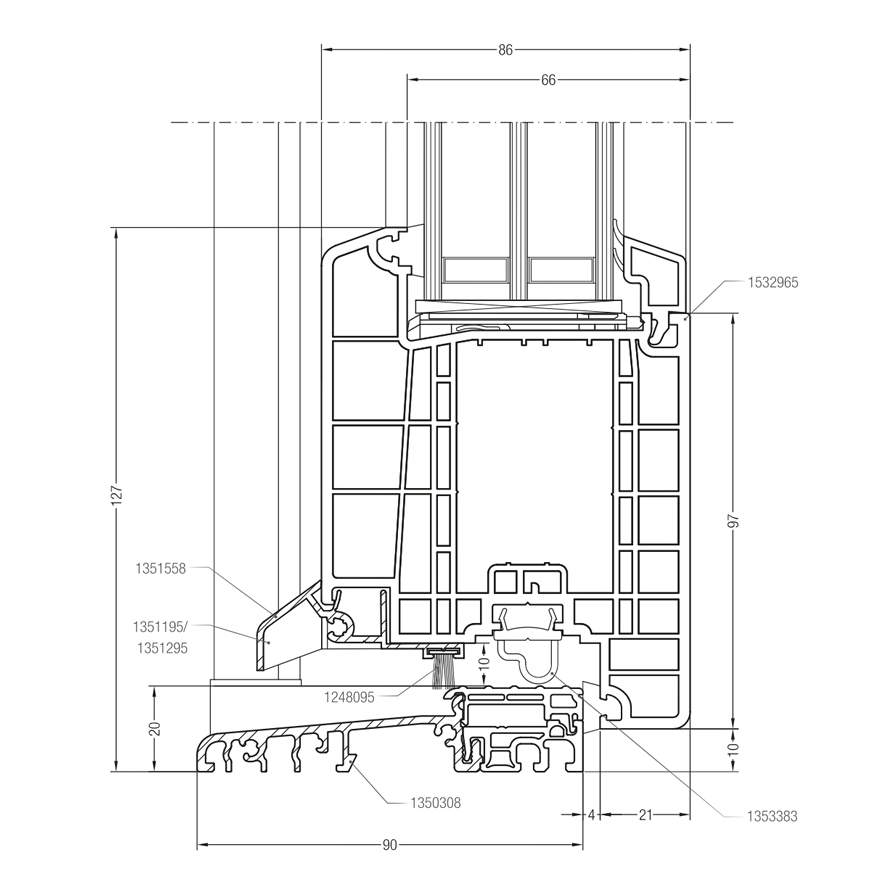

System structural parameters:

  • Installation depth (Frame/Sash): 86 mm / 86 mm.
  • Number of chambers: 6 functional chambers.
  • Core material: RAU-FIPRO® (fiber-reinforced composite) — eliminates the need for steel reinforcement in 90% of cases.
  • Surface: High-quality PVC (RAU-PVC) with HDF technology (High Definition Finishing) — perfectly smooth structure.
  • Sealing system: 3 continuous sealing circuits (outer, inner, and central) made of RAU-SR material (highly elastic EPDM), resistant to aging.
  • Threshold: Barrier-free threshold 20 mm high (complies with DIN 18040) with thermal break.

Glazing and infill options:

  • Maximum infill thickness: up to 53 mm.
  • Infill types: Double and triple glazing units, sandwich panels, armored glass.
  • Glazing rebate depth: 66 mm (provides deep seating of the unit to minimize edge fogging effect).

Maximum dimensions and statics (Maximum sash sizes):

  • Single-leaf entrance door (White / Colored): Width up to 1100 mm × Height up to 2300 mm.
  • Single-leaf with side panel: Total width unlimited (via static connectors).
  • Sash weight: Heavy infills permitted due to RAU-FIPRO core rigidity.

Certified characteristics (according to DIN EN 14351-1):

  • Profile thermal insulation (Uf): up to 0.76 W/m²K (with thermal modules).
  • Assembled door thermal insulation (Ud): up to 0.61 W/m²K (with Up = 0.5 infill).
  • Sound insulation (Rw): up to 47 dB (Sound insulation class 5) with 50 dB glazing.
  • Burglar resistance: up to RC2 class without steel reinforcement; up to RC3 class with additional reinforcement.
  • Air permeability: Class 4 (Highest) according to DIN EN 12207.
  • Water tightness (Rain protection): Class 9A (Highest, 600 Pa pressure) according to DIN EN 12208.
  • Wind load resistance: Class C5/B5 according to DIN EN 12210.

Rehau Geneo 86 Door

Revolutionary fiberglass RAU-FIPRO entrance door. 86 mm depth, Passivhaus certified for maximum energy efficiency. Steel-free reinforcement technology.

Average market price:

For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.

Calculate your door
Comfort Index
Heat insulation
9/10
Noise insulation
8/10

Compare with Similar Profiles

Alternative solutions from other manufacturers

UW- value 1.3
Rehau Euro-Design 70 economical entrance door

Rehau Euro-Design 70 Door

Optimal 70 mm PVC entrance door with the best price-to-German-quality ratio. 5-chamber profile, glossy HDF surface and reliable security hardware.
Energy rating
A
Door Type
Standard 70mm
Profile Depth
70mm
Chambers
5 chambers
Panel Thickness
up to 41mm
Security
RC1 / RC2
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Sound insulation
≈ 40 Rw(dB)
More details
UW- value 1.2
Rehau Brillant-Design Door

Rehau Brillant-Design 70 Door

Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.
Energy rating
A
Door type
Entrance door
Profile depth
70mm
Profile chambers
5 chambers
Panel thickness
up to 42mm
Security
up to RC2
Thermal protection
Uw ≤ 1.2 W/(m²·K)
Sound insulation
≈ 42 Rw(dB)
More details
UW- value 0.90
Technical cross-section of Rehau Synego 80mm profile: general view

Rehau Synego 80 Door

Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.
Energy rating
A++
Door type
Entrance door
Profile depth
80mm
Profile chambers
7 chambers
Panel thickness
up to 51mm
Security
up to RC2
Thermal protection
Uw ≤ 0.90 W/(m²·K)
Sound insulation
≈ 46 Rw(dB)
More details
UW- value ≤ 1.3
Kömmerling EuroFutur Puerta

Kömmerling EuroFutur Puerta

A classic 70 mm deep door system combining proven reliability and elegant design. The optimal solution for entrance groups in residential buildings and commercial premises.
Energy efficiency
B+
Material
PVC (Greenline)
Profile depth
70 mm
Profile chambers
5 chambers
Seals
2 seals
Glazing unit
up to 39 mm
Thermal protection (Uw)
≤ 1.3 W/(m²·K)
Sound insulation
≈ 40 Rw(dB)
More details
UW- value ≤ 0,79
Kömmerling 76 Puerta

Kömmerling 76 Puerta

A next-generation modern door system with 76 mm depth. Provides a balance between high energy efficiency and structural strength.
Energy efficiency
A
Material
PVC (Xtrem)
Profile depth
76 mm
Profile chambers
5 chambers
Seals
2 seals
Glazing unit
up to 50 mm
Thermal protection (Uw)
≤ 1 W/(m²·K)
Sound insulation
≈ 47 Rw(dB)
More details
UW- value ≤ 0.9
Kömmerling 88 Puerta

Kömmerling 88 Puerta

An elite premium-class door system designed for passive houses. Offers maximum thermal and sound insulation performance.
Energy efficiency
A++
Material
PVC (Ultra-Premium)
Profile depth
88 mm
Profile chambers
7 chambers
Seals
3 seals
Glazing unit
up to 56 mm
Thermal protection (Uw)
≤ 0.9 W/(m²·K)
Sound insulation
≈ 48 Rw(dB)
More details

Side by side

Head to Head: Closest Competitors

How Rehau Geneo 86 Door stacks up against the closest matches from other brands.

SpecificationRehau Geneo 86 DoorThis profileSchüco LivIng DoorKömmerling 88 PuertaVeka Softline 82 Door
BrandREHAUSchücoKömmerlingVEKA
MaterialPVCPVCPVCPVC
Profile depth86mm82mm88 mm82 mm
Chambers6 chambers7 chambers7 chambers7 chambers
Glass unit, maxup to 53mmup to 52mmup to 56 mmPanel / up to 52mm
Thermal (Uw)0.820,80≤ 0.91.1
Sound (Rw, dB)≈ 47 Rw(dB)≈45 Rw(dB)≈ 48 Rw(dB)≈ 44 Rw(dB)

See all door profiles compared.

Open full comparison

Leave a Review

Customer Reviews

Find out what people are saying about it

0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0

No reviews yet. Be the first!

FAQs

Frequently Asked Questions about Rehau Geneo 86 Door

What is RAU-FIPRO and why is it needed?

It is a high-tech fiber-reinforced composite material used in aerospace and Formula 1 cars. In Geneo doors, it replaces steel, providing the same strength without heat loss or extra weight.

Is there a Passivhaus certificate?

Yes, Rehau Geneo is one of the few systems officially certified by the Passive House Institute (Darmstadt) when using appropriate thermal modules.

What glazing thickness can be installed?

An impressive 53 mm. This allows the use of special triple-chamber (4 glass) units or armored triplex without losing thermal characteristics.

Is it suitable for large sizes?

Thanks to the rigidity of the fiberglass, we can manufacture large sashes (up to 2.30m high and 1.10m wide) while maintaining a warranty against sagging.

How safe is it without steel?

The RAU-FIPRO material is so strong that it is harder to break than regular plastic. Combined with security modules, the door easily achieves RC2/RC3 class.

What design options are available?

Geneo allows for hidden hinges (invisible from outside and inside), and is also available with exclusive KALEIDO COVER aluminum overlays for a modern architectural look.
