U_W- value 1.2

An entrance door that won't let you down. Welded corner joints in the sash guarantee high rigidity and stability even with active use.

The 70mm deep system provides good thermal insulation and break-in protection. This is a proven and reliable solution for cottages, townhouses and secondary exits, combining German quality and aesthetic appearance.

Technical Specifications

Details

Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.

Energy rating

Door type

Entrance door

Profile depth

70mm

Profile chambers

5 chambers

Panel thickness

up to 42mm

Security

up to RC2

Thermal protection

Uw ≤ 1.2 W/(m²·K)

Sound insulation

≈ 42 Rw(dB)

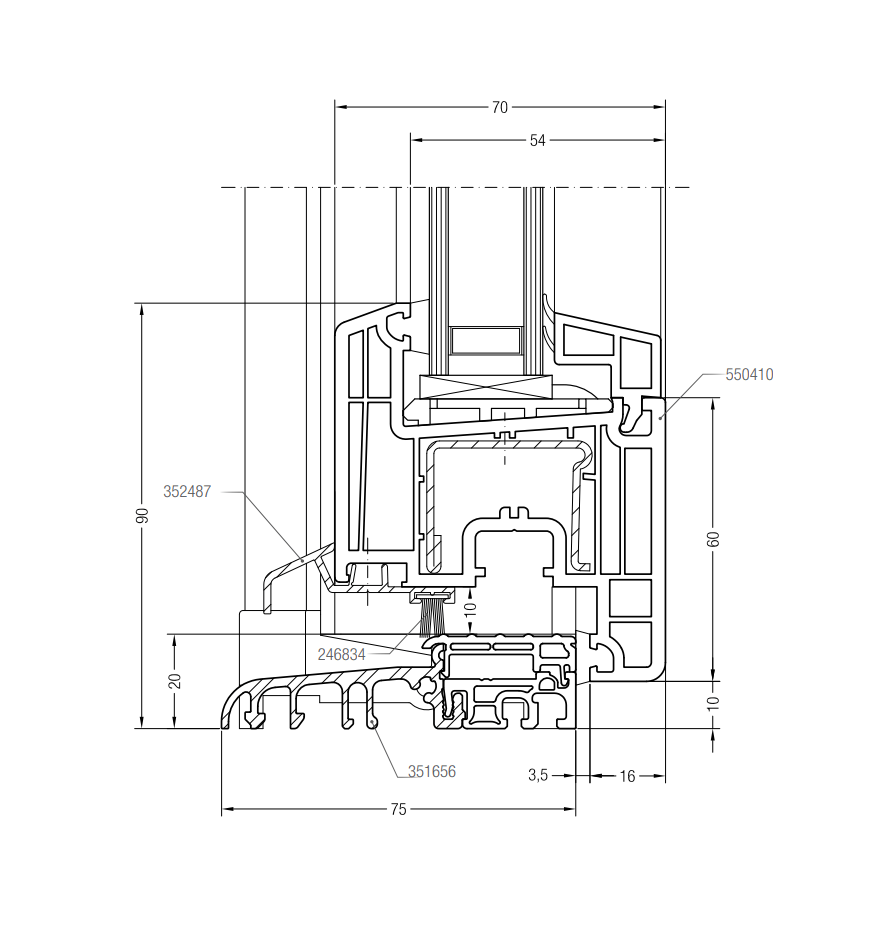

System structural parameters:

Installation depth: 70 mm.
Profile structure: 5 chambers (Frame) / 4 chambers (Sash).
Surface design: The Brillant system features elegant curves (2 mm radius) or 20° chamfers, giving the door a premium appearance.
Surface: HDF (High Definition Finishing) — ultra-smooth glossy surface, resistant to dirt and UV radiation.
Reinforcement: Powerful closed steel contour (metal thickness 1.5 to 2.0 mm) + welded corner connectors in sash for maximum statics.
Threshold: Aluminum threshold 20 mm height with thermal break (DIN 18040).

Glazing and infill options:

Maximum infill thickness: up to 41-42 mm.
Infill types: Double-glazed units (standard 32 mm or 40 mm), decorative sandwich panels, stained glass.
Glazing bead: Option to use shaped (rounded) glazing beads to maintain classic style.

Maximum sash dimensions:

Single-leaf door: Width up to 1000 mm × Height up to 2200 mm.
Double-leaf door (Tilt & Slide): Total width up to 1800 mm.
Sash weight: up to 100 kg (with reinforced hinges).

Certified characteristics (according to DIN EN 14351-1):

Profile thermal insulation (Uf): 1.3 W/m²K.
Assembled door thermal insulation (Ud): up to 1.1 - 1.2 W/m²K.
Sound insulation (Rw,p): up to 40-42 dB.
Burglary resistance: Class RC2 (formerly WK2) / RC3 (with special configuration).
Air permeability: Class 4 (DIN EN 12207).
Water tightness: Class 9A (DIN EN 12208).
Wind load: Class C2/B2.

Rehau Brillant-Design 70 Door

Name: Rehau Brillant-Design 70 Door
Brand: REHAU
SKU: rehau-brillant-design-door

Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.

Average market price:

For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.

Comfort Index

Compare with Similar Profiles

Alternative solutions from other manufacturers

U_W- value 1.3

Rehau Euro-Design 70 economical entrance door

Rehau Euro-Design 70 Door

Optimal 70 mm PVC entrance door with the best price-to-German-quality ratio. 5-chamber profile, glossy HDF surface and reliable security hardware.

Energy rating

Door Type

Standard 70mm

Profile Depth

70mm

Chambers

5 chambers

Panel Thickness

up to 41mm

Security

RC1 / RC2

Thermal protection

Uw ≤ 1.3 W/(m²·K)

Sound insulation

≈ 40 Rw(dB)

More details

U_W- value 0.90

Rehau Synego 80 Door

Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.

Energy rating

A++

Door type

Entrance door

Profile depth

80mm

Profile chambers

7 chambers

Panel thickness

up to 51mm

Security

up to RC2

Thermal protection

Uw ≤ 0.90 W/(m²·K)

Sound insulation

≈ 46 Rw(dB)

More details

U_W- value 0.82

Rehau Geneo 86 Door

Revolutionary fiberglass RAU-FIPRO entrance door. 86 mm depth, Passivhaus certified for maximum energy efficiency. Steel-free reinforcement technology.

Energy rating

A++

Door type

Entrance door

Profile depth

86mm

Material

RAU-FIPRO X

Profile chambers

6 chambers

Panel thickness

up to 53mm

Hinges

Hidden

Thermal protection

Uw ≤ 0.82 W/(m²·K)

Sound insulation

≈ 47 Rw(dB)

More details

U_W- value ≤ 1.3

Kömmerling EuroFutur Puerta

A classic 70 mm deep door system combining proven reliability and elegant design. The optimal solution for entrance groups in residential buildings and commercial premises.

Energy efficiency

B+

Material

PVC (Greenline)

Profile depth

70 mm

Profile chambers

5 chambers

Seals

2 seals

Glazing unit

up to 39 mm

Thermal protection (Uw)

≤ 1.3 W/(m²·K)

Sound insulation

≈ 40 Rw(dB)

More details

U_W- value ≤ 0,79

Kömmerling 76 Puerta

A next-generation modern door system with 76 mm depth. Provides a balance between high energy efficiency and structural strength.

Energy efficiency

Material

PVC (Xtrem)

Profile depth

76 mm

Profile chambers

5 chambers

Seals

2 seals

Glazing unit

up to 50 mm

Thermal protection (Uw)

≤ 1 W/(m²·K)

Sound insulation

≈ 47 Rw(dB)

More details

U_W- value ≤ 0.9

Kömmerling 88 Puerta

An elite premium-class door system designed for passive houses. Offers maximum thermal and sound insulation performance.

Energy efficiency

A++

Material

PVC (Ultra-Premium)

Profile depth

88 mm

Profile chambers

7 chambers

Seals

3 seals

Glazing unit

up to 56 mm

Thermal protection (Uw)

≤ 0.9 W/(m²·K)

Sound insulation

≈ 48 Rw(dB)

More details

Side by side

Head to Head: Closest Competitors

How Rehau Brillant-Design 70 Door stacks up against the closest matches from other brands.

Specification	Rehau Brillant-Design 70 DoorThis profile	Kömmerling EuroFutur Puerta	Veka AluConnect Door	WDS Door 76
Brand	REHAU	Kömmerling	VEKA	WDS
Material	PVC	PVC	PVC	PVC
Profile depth	70mm	70 mm	82 mm	—
Chambers	5 chambers	5 chambers	6 chambers	5 chambers
Glass unit, max	up to 42mm	up to 39 mm	Panel / up to 58mm	up to 48 mm
Thermal (Uw)	1.2	≤ 1.3	1.2	1.1
Sound (Rw, dB)	≈ 42 Rw(dB)	≈ 40 Rw(dB)	≈ 43 Rw(dB)	≈ 42 Rw(dB)

See all door profiles compared.

Open full comparison

Leave a Review

Customer Reviews

Find out what people are saying about it

0.0

Average rating

0 reviews

5 ★

4 ★

3 ★

2 ★

1 ★

No reviews yet. Be the first!

FAQs

Frequently Asked Questions about Rehau Brillant-Design 70 Door

Is this really an entrance door, not a balcony door?

Yes, this is a reinforced entrance unit. Unlike balcony doors, it uses a wide sash, powerful closed reinforcement (2mm+ metal) and special "hooves" (welded corner connectors). It won't sag and will withstand hundreds of thousands of opening cycles.

Won't the plastic turn yellow in the sun?

No. We use original Rehau profile with HDF (High Definition Finishing) formula. It is specially designed to resist aggressive UV rays. The door will stay white (or retain its lamination color) for decades.

Can I install an electronic lock?

Easily. The profile is compatible with modern access systems: fingerprint scanners, keypad panels and smart locks. We prepare all necessary milling at the factory.

Will there be a draft from below?

Excluded if you use the right threshold. We recommend a "warm" aluminum threshold with thermal break, 20mm high. It cuts off the cold bridge, protects from angled rain and is low enough not to trip over.

How hard is it to break in?

Very hard. When using a multi-point lock (bolts and hooks engage the frame at multiple points) and anti-burglary strikers, the door resists crowbar prying for 15-20 minutes (RC2 class). This is enough to deter any casual burglar.

What design can I choose?

Any. The 70mm profile accepts infills up to 42mm thick. These can be designer sandwich panels, stained glass, triplex glass, mirror inserts or wood-grain lamination. The door fits both classic and hi-tech styles.
