UW- value 0.90

An investment in future comfort. Rehau Synego is an engineering masterpiece for those who accept no compromises. Thanks to its 80mm mounting depth and 7-chamber structure, this door exceeds modern thermal insulation standards, making it ideal for passive houses and premium cottages.

Silence as a privilege. The system accommodates powerful glazing units and panels up to 51mm thick. This creates a reliable barrier not only against cold but also against city noise, turning your home into an oasis of tranquility.

Perfection in details. The unique HDF (High Definition Finishing) surface shines with brilliant luster and repels dust, while the hidden power of steel reinforcement turns your entrance into an impenetrable fortress.

Technical Specifications

Details

Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.

Energy rating
A++
Door type
Entrance door
Profile depth
80mm
Profile chambers
7 chambers
Panel thickness
up to 51mm
Security
up to RC2
Thermal protection
Uw ≤ 0.90 W/(m²·K)
Sound insulation
≈ 46 Rw(dB)

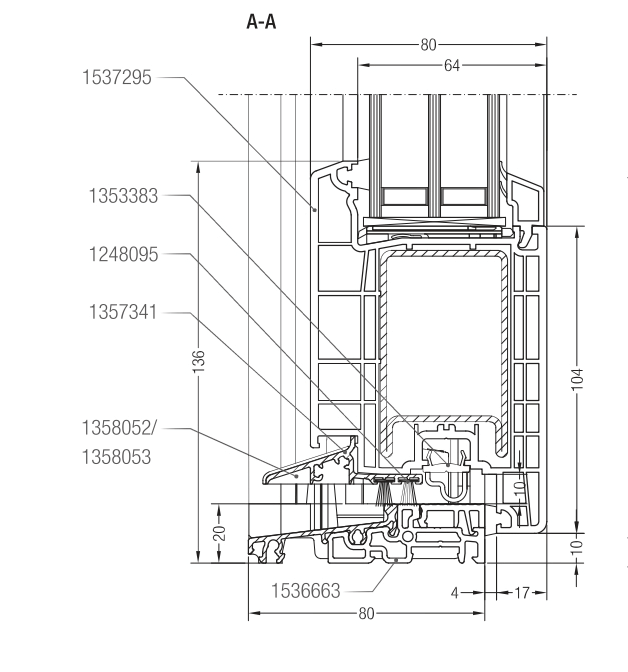

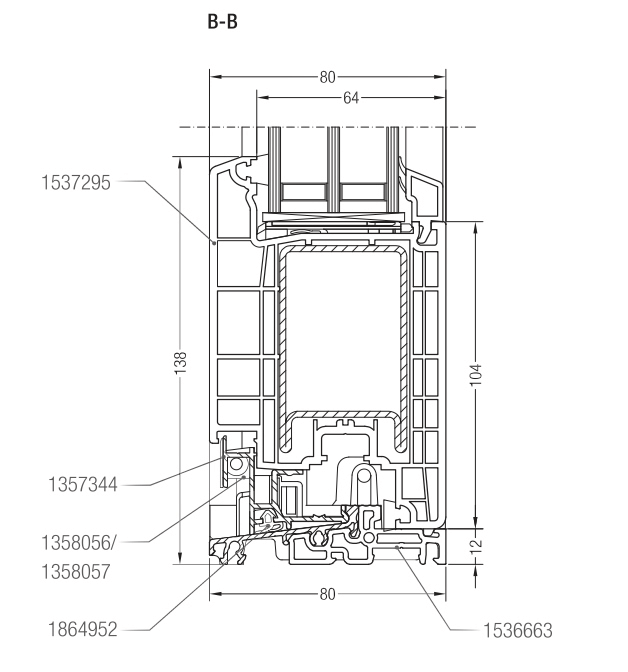

System structural parameters:

  • Installation depth: 80 mm.
  • Profile structure: 7 chambers in frame / 5 chambers in sash (optimized for statics).
  • Reinforcement: Mandatory high-inertia galvanized steel reinforcement inside the profile to ensure dimensional stability.
  • Surface: HDF (High Definition Finishing) technology — glossy, closed-pore, dirt-repellent.
  • Sealing system: Double-contour seal (AD) or triple-contour (MD) with central lip. Seal material: RAU-SR (EPDM) in gray or black.
  • Threshold: Aluminum threshold with thermal break, 20 mm height (complies with barrier-free environment requirements DIN 18040).

Glazing and infill options:

  • Maximum infill thickness: up to 51 mm.
  • Infill types: Energy-saving triple-glazed units, sandwich panels with acoustic membrane, aluminum cladding.
  • Sound insulation properties: Option to install glass of varying thicknesses to reduce resonance.

Maximum sash dimensions (Statics):

  • Single-leaf entrance door (White): Width up to 1000 mm × Height up to 2300 mm.
  • Single-leaf entrance door (Colored / Laminated): Width up to 1000 mm × Height up to 2200 mm (reinforced reinforcement required).
  • Allowable sash weight: up to 100 kg.

Certified characteristics (according to DIN EN 14351-1):

  • Profile thermal insulation (Uf): 0.94 W/m²K.
  • Assembled door thermal insulation (Ud): up to 0.82 W/m²K (with panel Up = 0.6).
  • Sound insulation (Rw,p): up to 46 dB (depending on glazing unit).
  • Burglary resistance: Class RC2 (standard) / RC3 (with reinforced hardware and P5A infill).
  • Air permeability: Class 4 (DIN EN 12207).
  • Water tightness (Rain protection): Class 9A (DIN EN 12208).
  • Wind load resistance: Class B5/C5 (DIN EN 12210).
  • Mechanical strength: Class 4 (Highest, extreme loads).

Rehau Synego 80 Door

Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.

Average market price:

For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.

Calculate your door
Comfort Index
Heat insulation
9/10
Noise insulation
7/10

Compare with Similar Profiles

Alternative solutions from other manufacturers

UW- value 1.3
Rehau Euro-Design 70 economical entrance door

Rehau Euro-Design 70 Door

Optimal 70 mm PVC entrance door with the best price-to-German-quality ratio. 5-chamber profile, glossy HDF surface and reliable security hardware.
Energy rating
A
Door Type
Standard 70mm
Profile Depth
70mm
Chambers
5 chambers
Panel Thickness
up to 41mm
Security
RC1 / RC2
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Sound insulation
≈ 40 Rw(dB)
More details
UW- value 1.2
Rehau Brillant-Design Door

Rehau Brillant-Design 70 Door

Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.
Energy rating
A
Door type
Entrance door
Profile depth
70mm
Profile chambers
5 chambers
Panel thickness
up to 42mm
Security
up to RC2
Thermal protection
Uw ≤ 1.2 W/(m²·K)
Sound insulation
≈ 42 Rw(dB)
More details
UW- value 0.82
Rehau Geneo Door

Rehau Geneo 86 Door

Revolutionary fiberglass RAU-FIPRO entrance door. 86 mm depth, Passivhaus certified for maximum energy efficiency. Steel-free reinforcement technology.
Energy rating
A++
Door type
Entrance door
Profile depth
86mm
Material
RAU-FIPRO X
Profile chambers
6 chambers
Panel thickness
up to 53mm
Hinges
Hidden
Thermal protection
Uw ≤ 0.82 W/(m²·K)
Sound insulation
≈ 47 Rw(dB)
More details
UW- value ≤ 1.3
Kömmerling EuroFutur Puerta

Kömmerling EuroFutur Puerta

A classic 70 mm deep door system combining proven reliability and elegant design. The optimal solution for entrance groups in residential buildings and commercial premises.
Energy efficiency
B+
Material
PVC (Greenline)
Profile depth
70 mm
Profile chambers
5 chambers
Seals
2 seals
Glazing unit
up to 39 mm
Thermal protection (Uw)
≤ 1.3 W/(m²·K)
Sound insulation
≈ 40 Rw(dB)
More details
UW- value ≤ 0,79
Kömmerling 76 Puerta

Kömmerling 76 Puerta

A next-generation modern door system with 76 mm depth. Provides a balance between high energy efficiency and structural strength.
Energy efficiency
A
Material
PVC (Xtrem)
Profile depth
76 mm
Profile chambers
5 chambers
Seals
2 seals
Glazing unit
up to 50 mm
Thermal protection (Uw)
≤ 1 W/(m²·K)
Sound insulation
≈ 47 Rw(dB)
More details
UW- value ≤ 0.9
Kömmerling 88 Puerta

Kömmerling 88 Puerta

An elite premium-class door system designed for passive houses. Offers maximum thermal and sound insulation performance.
Energy efficiency
A++
Material
PVC (Ultra-Premium)
Profile depth
88 mm
Profile chambers
7 chambers
Seals
3 seals
Glazing unit
up to 56 mm
Thermal protection (Uw)
≤ 0.9 W/(m²·K)
Sound insulation
≈ 48 Rw(dB)
More details

Side by side

Head to Head: Closest Competitors

How Rehau Synego 80 Door stacks up against the closest matches from other brands.

SpecificationRehau Synego 80 DoorThis profileKömmerling 88 PuertaSchüco LivIng DoorVeka Softline 82 Door
BrandREHAUKömmerlingSchücoVEKA
MaterialPVCPVCPVCPVC
Profile depth80mm88 mm82mm82 mm
Chambers7 chambers7 chambers7 chambers7 chambers
Glass unit, maxup to 51mmup to 56 mmup to 52mmPanel / up to 52mm
Thermal (Uw)0.90≤ 0.90,801.1
Sound (Rw, dB)≈ 46 Rw(dB)≈ 48 Rw(dB)≈45 Rw(dB)≈ 44 Rw(dB)

See all door profiles compared.

Open full comparison

Leave a Review

Customer Reviews

Find out what people are saying about it

0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0

No reviews yet. Be the first!

FAQs

Frequently Asked Questions about Rehau Synego 80 Door

What is the difference between Synego (80mm) and Brillant (70mm)?

Synego is the evolution. It is 10mm thicker, has 7 chambers instead of 5, and an additional middle sealing contour (optional). While Brillant is an excellent standard, Synego is a premium solution for maximum energy savings and passive houses.

Is this door suitable for Passive Houses?

Yes. With a heat transfer coefficient Uf down to 0.9 W/m²K and the ability to install triple-chamber glazing, Synego perfectly fits Passivhaus standards and nearly zero energy buildings (nZEB).

Will it protect from street noise?

Absolutely. Thanks to the ability to install thick acoustic units (up to 51mm), the door reduces noise levels by more than 20 times. You will stop hearing passing cars or neighbors barking dogs.

How reliable is the break-in protection?

The Synego design allows achieving resistance class RC3. This means the door withstands active break-in attempts using heavy tools (crowbar, pry bar) for an extended period.

Can the door be connected to a Smart Home?

Yes, Synego is designed for modern technologies. We can integrate electromechanical locks that open via smartphone, card or fingerprint, and connect opening sensors to your alarm system.

Will the door match the windows?

Absolutely. Synego doors are manufactured in the same KALEIDO COLOR palette as Rehau window systems. You will get a perfectly coordinated facade in a unified style and color.
