REHAU Eurodesign 70 is a high-quality PVC profile system for windows and doors, providing comfort, energy efficiency and security. The system has an installation depth of 70 mm and 5-chamber technology, which allows excellent thermal insulation and reduces heating costs. It also features high sound insulation, weather resistance and durability.
Eurodesign 70 profiles are easy to clean thanks to their smooth surface and provide enhanced burglary protection. The system offers a wide range of design solutions, including various shapes, colors and sash options, allowing it to harmoniously fit into any architectural style. It is a universal solution for both new construction and modernization, combining economy, quality and aesthetics.
Technical Specifications
Classic 5-chamber system with 70 mm depth, reliable and economical for standard construction. HDF surface.
System Design Parameters:
Glazing and Infill Options:

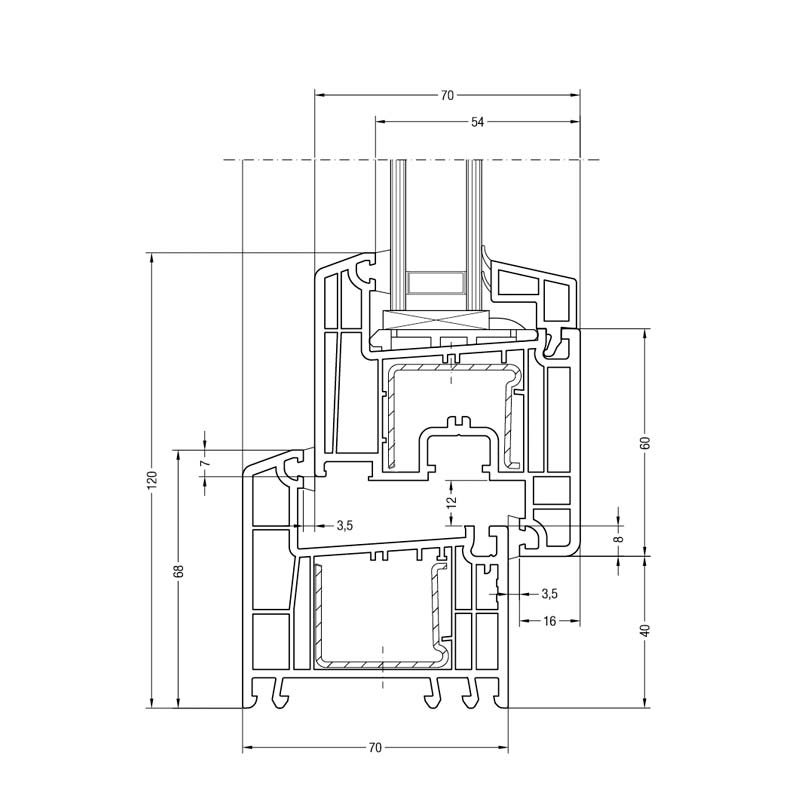

Geometry and Dimensions (Window):
Certified Characteristics (according to DIN EN 14351-1):
Documentation
Classic 5-chamber system with 70 mm depth, reliable and economical for standard construction. HDF surface.
For a standard 2-sash tilt-and-turn window (1200 × 1400 mm) with basic double-glazed unit.
Alternative solutions from other manufacturers
Side by side
How Rehau Euro-design 70 stacks up against the closest matches from other brands.
| Specification | Rehau Euro-design 70This profile | Veka Softline 70 | Schüco Corona CT 70 | WDS 6S (70 mm) |
|---|---|---|---|---|
| Brand | REHAU | VEKA | Schüco | WDS |
| Material | PVC | PVC | PVC | PVC |
| Profile depth | 70mm | 70mm | 70mm | 70mm |
| Chambers | 5 chambers | 5 chambers | 5 chambers | 6 chambers |
| Glass unit, max | up to 40mm | up to 42mm | up to 52mm | up to 40mm |
| Thermal (Uw) | 1.3 | 1.3 | 1.3 | 1.3 |
| Sound (Rw, dB) | ≈43 Rw(dB) | ≈45 Rw(dB) | ≈48 Rw(dB) | ≈40 Rw(dB) |
See all window profiles compared.
Open full comparisonLeave a Review
Find out what people are saying about it
No reviews yet. Be the first!
FAQs
It is a classic 5-chamber system with an installation depth of 70 mm. It provides balanced heat/noise performance at an affordable price and is suitable for new construction and renovations.
Up to 40 mm - this allows the use of energy-saving double and triple glazed units with warm spacer.
Yes, the basic sound insulation of the system ≈43 dB (Rw) with the correct glass unit configuration, which is sufficient for most urban conditions.
Yes, Euro-design 70 frames and sashes use steel reinforcement for rigidity, especially for large sizes and/or lamination.
Smooth HDF surface, various bead shapes, wood and RAL laminations, decorative handles and concealed hardware on request.
Recommended limits - up to ~1.3-1.4 m in width for tilt-and-turn sashes (depend on hardware/glass unit); exact dimensions are agreed upon during calculation.
Available anti-burglary configurations up to RC2, child locks, micro-ventilation, slot and stepped ventilation, supply valves.
Both systems are 70 mm and 5-chamber; Brillant-Design 70 - with an emphasis on premium aesthetics and expanded design, Euro-design 70 - on practicality and price.
