U_W- value 1.5

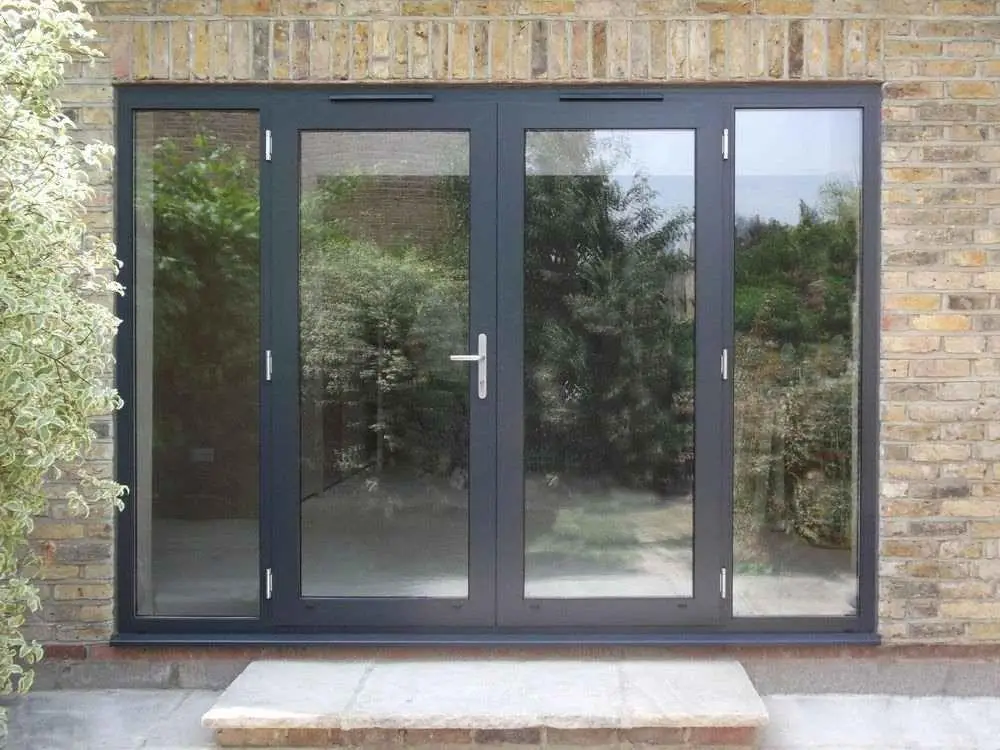

WDS Door 60 — Strength and functionality without overpaying. This is a specialized door system with 60 mm installation depth. It's designed for high-traffic locations (shops, pharmacies, building entrances) or as a secondary entry door in private homes (kitchen exit to terrace, garage or boiler room entrance).

How does it differ from a window door?

Robust sash: Sash profile width is 116 mm (vs 80 mm for windows). This allows installing heavy-duty push hardware, office pull handle, and door closer.
Closed reinforcement: Inside the plastic is a 2 mm thick steel tube (square or rectangular). The door won't "sag" or deform from heat, which often happens with cheap alternatives.
Aluminum threshold: Door comes with low warm threshold (20 mm), convenient for strollers and carts, which blocks bottom drafts.

The optimal choice for Spain's climate, where super-thick doors for polar winters aren't needed, but reliability and burglary protection are important.

Technical Specifications

Details

Reliable "workhorse." 60 mm entry group for shops, offices, and utility rooms.

Energy rating

Purpose

Shops / Offices

Installation depth

60 mm

Profile chambers

3 chambers

Infill thickness

up to 32 mm

Threshold type

Aluminum (20 or 54mm)

Security

Multipoint lock

Thermal protection

Uw ≤ 1.5 W/(m²·K)

Sound insulation

≈ 34 Rw(dB)

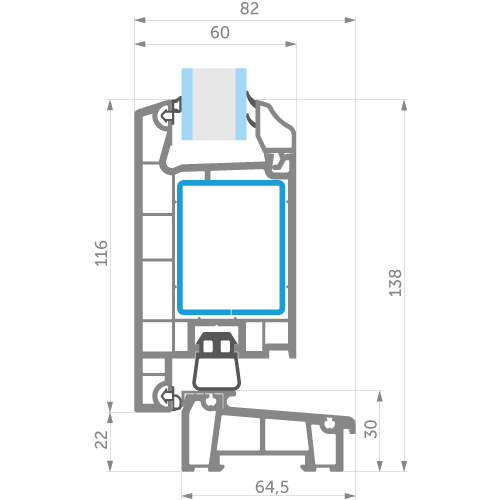

System Design Parameters:

Installation depth: 60 mm.
Profile construction: 3 chambers in frame and sash (optimized for rigidity and lock mechanism placement).
Opening type: Outward (T-sash) or inward (Z-sash).
Reinforcement: Reinforced steel frame (metal thickness from 1.5 to 2.0 mm depending on loads). Ensures geometry stability with intensive use.
Sealing: 2 circuits of durable TPV gasket, resistant to temperature fluctuations and mechanical wear.
Threshold: Low aluminum threshold (20 mm height) with thermal insert or standard frame (closed contour).

Filling Options:

Filling thickness: from 4 mm to 32 mm.
Options: Single-chamber or double-chamber glass units, sandwich panels, decorative door panels.

Maximum Sash Dimensions:

Maximum sash width: up to 1000 mm.
Maximum sash height: up to 2250 mm.
Sash weight: up to 100-120 kg (depending on hinge class).

Performance Characteristics:

Thermal insulation (Uf): ~1.6 W/m²K.
Thermal resistance coefficient (Ro): up to 0.62 m²°C/W (with appropriate filling).
Burglar resistance: Possibility of installing multi-point locks (espagnolettes) with bolts and hooks.
Water tightness: Class 5A-7A (depends on threshold type).

Documentation

WDS Full Technical Catalog

PDF. 6.3Mb

WDS Door 60

Reliable "workhorse." 60 mm entry group for shops, offices, and utility rooms.

Average market price:

For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.

Comfort Index

Compare with Similar Profiles

Alternative solutions from other manufacturers

U_W- value 1.3

WDS Door 70

Golden standard entry door. 70 mm profile with improved thermal insulation for private homes and cottages.

Energy rating

Purpose

Private home

Installation depth

70 mm

Profile chambers

4 chambers

Infill thickness

up to 40 mm

Threshold type

Aluminum (Termo)

Security

Class RC2

Thermal protection

Uw ≤ 1.3 W/(m²·K)

Sound insulation

≈ 38 Rw(dB)

More details

U_W- value 1.1

WDS Door 76

Flagship entry door. Maximum burglary and cold protection for country homes.

Energy rating

A+

Purpose

Premium cottage

Installation depth

76 mm

Profile chambers

5 chambers

Infill thickness

up to 48 mm

Threshold type

Termo-Umbral

Security

Class RC2 / RC3

Thermal protection

Uw ≤ 1.1 W/(m²·K)

Sound insulation

≈ 42 Rw(dB)

More details

U_W- value 1.0

WDS Door 76

Flagship series with "aluminum-look" design. Sash is hidden by panel creating perfectly flat surface.

Energy rating

A++

Purpose

Design / Hi-Tech

Installation depth

76 mm (Hidden)

Profile chambers

5 chambers

Infill thickness

Panel 60 mm

Threshold type

Termo-Umbral

Security

Concealed hinges

Thermal protection

Uw ≤ 1.0 W/(m²·K)

Sound insulation

≈ 42 Rw(dB)

More details

U_W- value 1.3

Rehau Euro-Design 70 economical entrance door

Rehau Euro-Design 70 Door

Optimal 70 mm PVC entrance door with the best price-to-German-quality ratio. 5-chamber profile, glossy HDF surface and reliable security hardware.

Energy rating

Door Type

Standard 70mm

Profile Depth

70mm

Chambers

5 chambers

Panel Thickness

up to 41mm

Security

RC1 / RC2

Thermal protection

Uw ≤ 1.3 W/(m²·K)

Sound insulation

≈ 40 Rw(dB)

More details

U_W- value 1.2

Rehau Brillant-Design 70 Door

Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.

Energy rating

Door type

Entrance door

Profile depth

70mm

Profile chambers

5 chambers

Panel thickness

up to 42mm

Security

up to RC2

Thermal protection

Uw ≤ 1.2 W/(m²·K)

Sound insulation

≈ 42 Rw(dB)

More details

U_W- value 0.90

Rehau Synego 80 Door

Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.

Energy rating

A++

Door type

Entrance door

Profile depth

80mm

Profile chambers

7 chambers

Panel thickness

up to 51mm

Security

up to RC2

Thermal protection

Uw ≤ 0.90 W/(m²·K)

Sound insulation

≈ 46 Rw(dB)

More details

Side by side

Head to Head: Closest Competitors

How WDS Door 60 stacks up against the closest matches from other brands.

Specification	WDS Door 60This profile	Veka Softline 70 Door	Rehau Euro-Design 70 Door	Kömmerling EuroFutur Puerta
Brand	WDS	VEKA	REHAU	Kömmerling
Material	PVC	PVC	PVC	PVC
Profile depth	—	70 mm	70mm	70 mm
Chambers	3 chambers	5 chambers	5 chambers	5 chambers
Glass unit, max	up to 32 mm	Panel / up to 42mm	up to 41mm	up to 39 mm
Thermal (Uw)	1.5	1.6	1.3	≤ 1.3
Sound (Rw, dB)	≈ 34 Rw(dB)	≈ 40 Rw(dB)	≈ 40 Rw(dB)	≈ 40 Rw(dB)

See all door profiles compared.

Open full comparison

Leave a Review

Customer Reviews

Find out what people are saying about it

0.0

Average rating

0 reviews

5 ★

4 ★

3 ★

2 ★

1 ★

No reviews yet. Be the first!

FAQs

Frequently Asked Questions about WDS Door 60

Is this door suitable as the main entrance?

For an apartment or office — yes, perfectly. For a private home, we recommend considering the 70 mm or 76 mm series as they're warmer. WDS 60 is an excellent option for "back entrance," garden exit, or garage.

What infill can be installed?

We can install clear glass, frosted glass (carglass), mirror, or opaque sandwich panel (plastic with insulation). Combination is also possible (glass on top, panel on bottom).

What hinges are used?

We install reinforced surface-mounted hinges (rated for 120 kg) adjustable in three planes (3D). This allows easy door adjustment if it sags slightly after 5 years.

Can an electric lock (intercom) be connected?

Yes, the profile is compatible with all types of electric latches and access control systems. This is a standard solution for entrance doors in building lobbies and office centers.
