UW- value 1.3

WDS Door 70 — Your fortress and calling card. This system is designed specifically for main entry groups of private homes and cottages. The increased installation depth (70 mm) and 5-chamber profile structure make this door a full barrier against winter cold and summer heat.

Advantages over standard doors:

  • Thermal insulation: Unlike "cold" aluminum or thin 60 mm doors, the WDS 70 system doesn't freeze or "cry" with condensation. This allows installing it directly in the entryway without building a cold vestibule.
  • Monolithic: We use special "hooves" (welded corner connectors) inside the profile. This prevents heavy sash sagging, even if it weighs over 100 kg. The door will close as easily in 10 years as on day one.
  • Silence: The ability to install 40 mm glass units allows using soundproof glass, completely blocking street noise.

The choice of those who install a door once and for a long time.

Technical Specifications

Details

Golden standard entry door. 70 mm profile with improved thermal insulation for private homes and cottages.

Energy rating
A
Purpose
Private home
Installation depth
70 mm
Profile chambers
4 chambers
Infill thickness
up to 40 mm
Threshold type
Aluminum (Termo)
Security
Class RC2
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Sound insulation
≈ 38 Rw(dB)

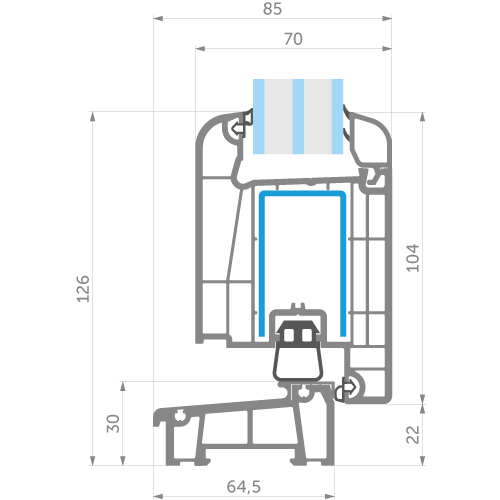

System Design Parameters:

  • Installation depth: 70 mm.
  • Profile construction: 4 chambers (optimized for maximum rigidity and thermal insulation).
  • Sash type: Wide door sash (Z-sash for inward opening or T-sash for outward opening).
  • Reinforcement: Robust closed steel frame in frame and reinforced sash reinforcement (metal thickness up to 2.0 mm).
  • Corner joints: Possibility of using special welded connectors (corner reinforcers) for increased tear strength.
  • Threshold: Low aluminum threshold (20 mm) with thermal break, preventing floor freezing.

Glazing and Filling Options:

  • Maximum filling thickness: up to 40 mm.
  • Filling types: Energy-saving double-chamber glass units, impact-resistant glass (triplex), warm sandwich panels or decorative HPL panels.

Maximum Sash Dimensions:

  • Maximum sash width: up to 1050 mm (single-leaf) / up to 1800 mm (double-leaf tilt-and-slide).
  • Maximum sash height: up to 2350 mm.
  • Sash weight: up to 120-140 kg (with reinforced door hinges).

Performance Characteristics:

  • Thermal resistance coefficient (Ro): up to 0.85 m²°C/W (depends on filling).
  • Profile thermal insulation (Uf): ~1.4 W/m²K.
  • Burglar resistance: Possibility of installing multi-point lock espagnolettes with 3-5 locking points for burglary protection.
  • Air permeability: Class 4.
  • Water tightness: Class 8A (DIN EN 12208).

Documentation

WDS Full Technical Catalog
WDS Full Technical Catalog
PDF. 6.3Mb

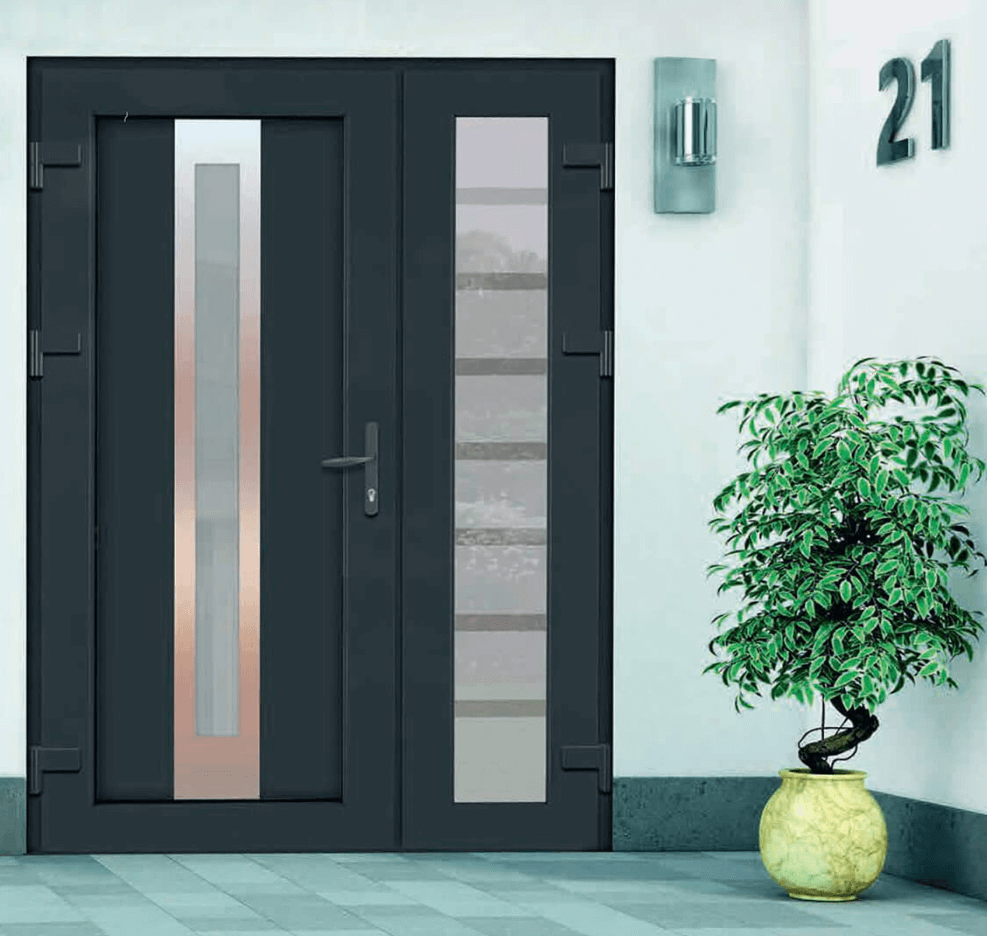

WDS Door 70

Golden standard entry door. 70 mm profile with improved thermal insulation for private homes and cottages.

Average market price:

For a standard entrance door (900 × 2100 mm) with a mid-range filling panel.

Calculate your door
Comfort Index
Heat insulation
6/10
Noise insulation
2/10

Compare with Similar Profiles

Alternative solutions from other manufacturers

UW- value 1.5
WDS Door 60

WDS Door 60

Reliable "workhorse." 60 mm entry group for shops, offices, and utility rooms.
Energy rating
B
Purpose
Shops / Offices
Installation depth
60 mm
Profile chambers
3 chambers
Infill thickness
up to 32 mm
Threshold type
Aluminum (20 or 54mm)
Security
Multipoint lock
Thermal protection
Uw ≤ 1.5 W/(m²·K)
Sound insulation
≈ 34 Rw(dB)
More details
UW- value 1.1
WDS Door 76

WDS Door 76

Flagship entry door. Maximum burglary and cold protection for country homes.
Energy rating
A+
Purpose
Premium cottage
Installation depth
76 mm
Profile chambers
5 chambers
Infill thickness
up to 48 mm
Threshold type
Termo-Umbral
Security
Class RC2 / RC3
Thermal protection
Uw ≤ 1.1 W/(m²·K)
Sound insulation
≈ 42 Rw(dB)
More details
UW- value 1.0
WDS Door 76

WDS Door 76

Flagship series with "aluminum-look" design. Sash is hidden by panel creating perfectly flat surface.
Energy rating
A++
Purpose
Design / Hi-Tech
Installation depth
76 mm (Hidden)
Profile chambers
5 chambers
Infill thickness
Panel 60 mm
Threshold type
Termo-Umbral
Security
Concealed hinges
Thermal protection
Uw ≤ 1.0 W/(m²·K)
Sound insulation
≈ 42 Rw(dB)
More details
UW- value 1.3
Rehau Euro-Design 70 economical entrance door

Rehau Euro-Design 70 Door

Optimal 70 mm PVC entrance door with the best price-to-German-quality ratio. 5-chamber profile, glossy HDF surface and reliable security hardware.
Energy rating
A
Door Type
Standard 70mm
Profile Depth
70mm
Chambers
5 chambers
Panel Thickness
up to 41mm
Security
RC1 / RC2
Thermal protection
Uw ≤ 1.3 W/(m²·K)
Sound insulation
≈ 40 Rw(dB)
More details
UW- value 1.2
Rehau Brillant-Design Door

Rehau Brillant-Design 70 Door

Classic reliable 70mm PVC entrance door with high stability and elegant rounded design. Premium HDF surface finish for lasting aesthetic appeal.
Energy rating
A
Door type
Entrance door
Profile depth
70mm
Profile chambers
5 chambers
Panel thickness
up to 42mm
Security
up to RC2
Thermal protection
Uw ≤ 1.2 W/(m²·K)
Sound insulation
≈ 42 Rw(dB)
More details
UW- value 0.90
Technical cross-section of Rehau Synego 80mm profile: general view

Rehau Synego 80 Door

Energy-efficient 80mm door (Passivhaus standard). Up to 50% more heat retention, 46 dB sound insulation and RC3 break-in resistance.
Energy rating
A++
Door type
Entrance door
Profile depth
80mm
Profile chambers
7 chambers
Panel thickness
up to 51mm
Security
up to RC2
Thermal protection
Uw ≤ 0.90 W/(m²·K)
Sound insulation
≈ 46 Rw(dB)
More details

Side by side

Head to Head: Closest Competitors

How WDS Door 70 stacks up against the closest matches from other brands.

SpecificationWDS Door 70This profileRehau Euro-Design 70 DoorKömmerling EuroFutur PuertaVeka Softline 76 Door
BrandWDSREHAUKömmerlingVEKA
MaterialPVCPVCPVCPVC
Profile depth—70mm70 mm76 mm
Chambers4 chambers5 chambers5 chambers5 chambers
Glass unit, maxup to 40 mmup to 41mmup to 39 mmPanel / up to 48mm
Thermal (Uw)1.31.3≤ 1.31.3
Sound (Rw, dB)≈ 38 Rw(dB)≈ 40 Rw(dB)≈ 40 Rw(dB)≈ 42 Rw(dB)

See all door profiles compared.

Open full comparison

Leave a Review

Customer Reviews

Find out what people are saying about it

0.0
Average rating
0 reviews
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0

No reviews yet. Be the first!

FAQs

Frequently Asked Questions about WDS Door 70

What's the difference between WDS Door 60 and 70?

The main difference is thermal insulation and rigidity. The 70 mm series is warmer (5 chambers vs 4) and allows thicker glass units (40 mm vs 32 mm). For residential homes, we specifically recommend the 70 series.

How well is this door protected from burglars?

We install locks with 5 locking points (hooks and pins). When turning the key, the door locks around the entire perimeter, making sash forcing with a crowbar virtually impossible (RC2 class).

Will there be drafts from under the threshold?

No. We use a "warm" aluminum threshold with thermal break and double bottom sealing. It doesn't freeze and eliminates floor-level drafts.

What size door can be made?

WDS 70 system allows manufacturing sashes up to 2300 mm high and 1100 mm wide. For wider openings, we make French (double-sash) doors.
