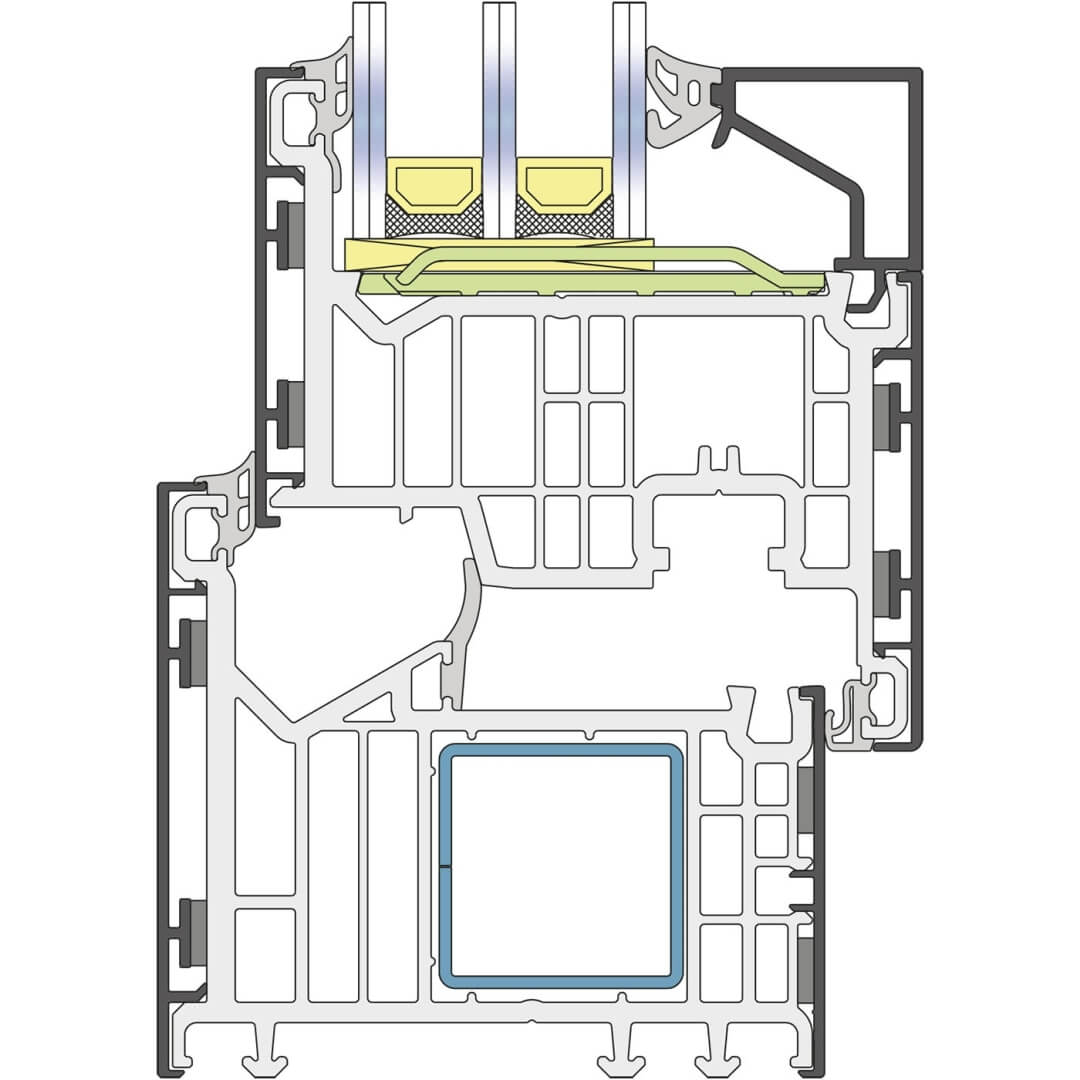

Veka AluConnect is a unique engineering development that combines the advantages of two materials into a single integrated system. Unlike standard windows with aluminum cladding, here aluminum is not just decoration but a load-bearing structural element. The outer aluminum contour takes on all static loads, allowing elimination of steel reinforcement inside the profile. Inside is the "warm heart" — a multi-chamber PVC profile that provides the highest thermal insulation, unattainable for conventional aluminum systems without expensive thermal breaks.

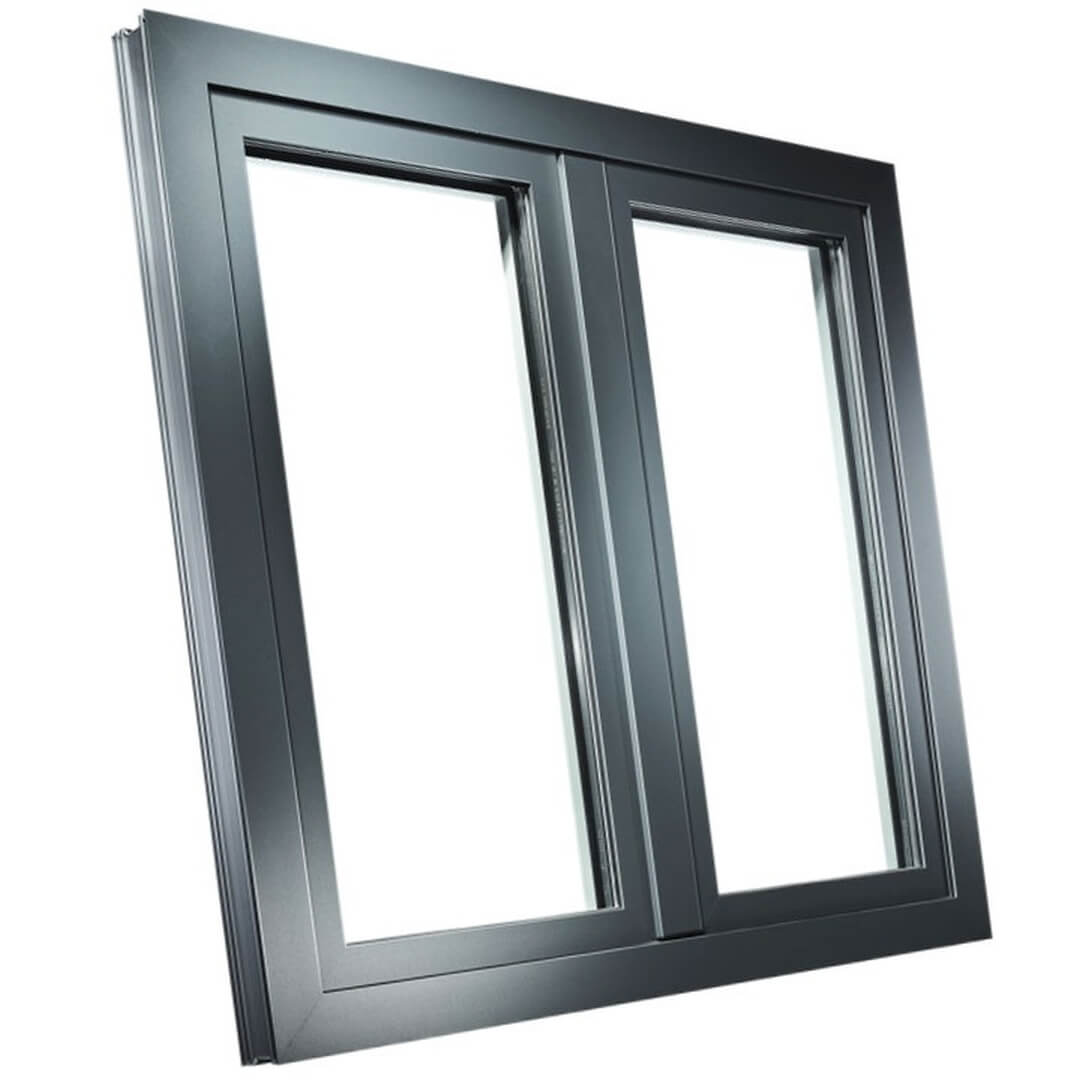

The system is designed specifically for modern architecture: it features strict rectangular forms, narrow mullions, and the option for powder coating in any RAL color. Thanks to the rigid connection between aluminum and PVC, the window maintains perfect geometry under any temperature fluctuations. This is the ideal choice for those who want the premium appearance of aluminum windows but are not willing to sacrifice home comfort or overpay for heating.
Technical Specifications
Revolutionary hybrid. Load-bearing aluminum profile on the outside and warm PVC core inside. Aluminum design with plastic thermal insulation.
System Design Parameters:
Glazing and Design Options:
Geometry and Features:
Certified Characteristics:
Revolutionary hybrid. Load-bearing aluminum profile on the outside and warm PVC core inside. Aluminum design with plastic thermal insulation.
For a standard 2-sash tilt-and-turn window (1200 × 1400 mm) with basic double-glazed unit.
Alternative solutions from other manufacturers
Side by side
How Veka AluConnect stacks up against the closest matches from other brands.
| Specification | Veka AluConnectThis profile | Rehau Brillant-Design 80 | WDS 76 AD (76 mm) | Kömmerling EuroFutur Elegance |
|---|---|---|---|---|
| Brand | VEKA | REHAU | WDS | Kömmerling |
| Material | PVC | PVC | PVC | PVC |
| Profile depth | 82mm | 80mm | 76mm | 70 mm |
| Chambers | Multi-chamber | 6 chambers | 5 chambers | — |
| Glass unit, max | up to 58mm | up to 44mm | up to 48mm | up to 39 mm |
| Thermal (Uw) | 1.1 | 1.1 | 1.1 | ≤ 1.1 |
| Sound (Rw, dB) | ≈46 Rw(dB) | ≈45 Rw(dB) | ≈46 Rw(dB) | ≈ 40 Rw(dB) |
See all window profiles compared.
Open full comparisonLeave a Review
Find out what people are saying about it
No reviews yet. Be the first!
FAQs
In windows with cladding, the PVC profile with reinforcement is load-bearing, and aluminum is just decoration. In AluConnect, aluminum is the load-bearing skeleton of the window. They are permanently connected to PVC under factory conditions and work as a single unit.
AluConnect is significantly warmer than standard aluminum (Uf 1.1) because there is no cold-conducting metal inside, but warm PVC instead. Plus, the cost of AluConnect is often lower than premium aluminum systems with wide thermal breaks.
On the outside, you see a perfect aluminum joint at 90 degrees (like on expensive aluminum windows), without the ground weld seam typical of plastic. Inside — a neat PVC weld seam.
Yes, the outer aluminum part is powder coated in any RAL color. The coating is vandal-resistant and does not fade in the sun for decades. The inner part can be white or laminated.
In most standard structures — no. The closed aluminum contour on the outside provides excellent statics, superior to conventional steel reinforcement inside PVC. This also reduces sash weight.
The system allows glass units up to 58 mm. This opens access to armored glass, heavy acoustic laminated glass, and triple-chamber units for extreme climates.
