Cortizo A 84 Passivhaus is the technological pinnacle in the PVC profile range, created for those who accept no compromises in thermal insulation. This system is officially certified by the prestigious Passivhaus Institute (Germany) for the "cool temperate climate" category, making it the ideal choice for passive houses and projects with the highest energy-saving requirements. In Spanish conditions, this window works as a powerful thermal barrier: in winter it retains 100% of heat inside, and in hot summer it blocks the heat, allowing significant savings on air conditioning.

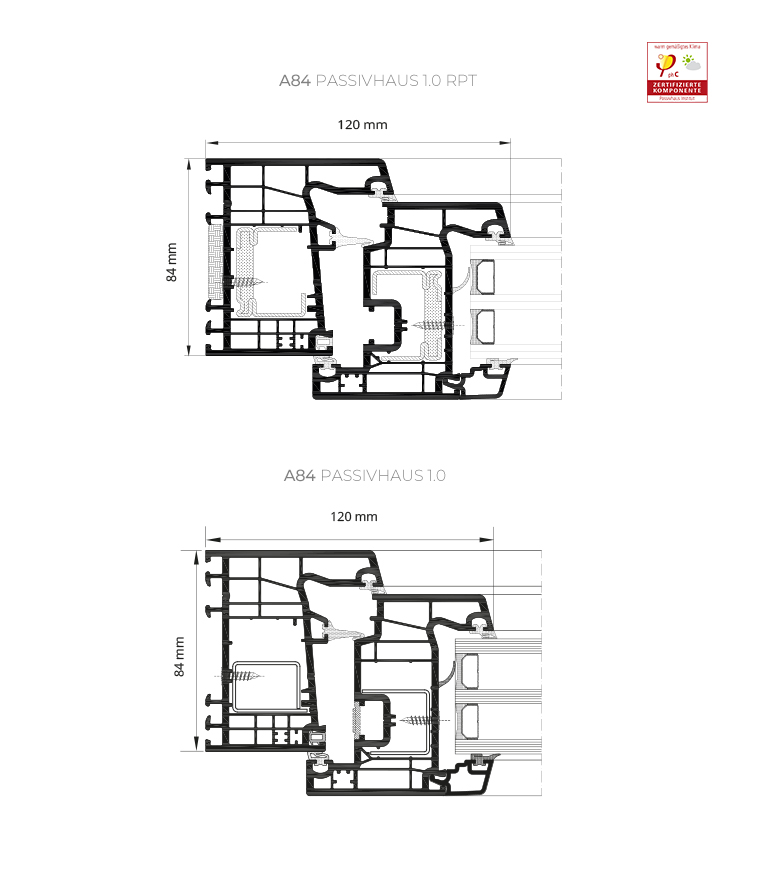

The profile construction is impressive: 84 mm installation depth, 6 isolated air chambers and, most importantly, three sealing circuits (including the central gasket). This architecture reduces heat loss to a physical minimum. The system is designed for installing heavy triple glazing units up to 56 mm thick. By installing Cortizo A 84, you're investing in the future: these are windows that are decades ahead of modern building standards, providing luxury-class silence and climate control.
Technical Specifications
The absolute champion of energy efficiency. A certified Passivhaus standard system with 84 mm installation depth and 6 chambers for zero-energy homes with maximum comfort.
System Design Parameters:
Glazing Options:
Maximum Dimensions and Design:
Certified Specifications:
The absolute champion of energy efficiency. A certified Passivhaus standard system with 84 mm installation depth and 6 chambers for zero-energy homes with maximum comfort.
For a standard 2-sash tilt-and-turn window (1200 × 1400 mm) with basic double-glazed unit.
Alternative solutions from other manufacturers
Side by side
How Cortizo A 84 Passivhaus stacks up against the closest matches from other brands.
| Specification | Cortizo A 84 PassivhausThis profile | Kömmerling 88 MD | Rehau Geneo PHZ | Schüco LivIng 82 |
|---|---|---|---|---|
| Brand | Cortizo | Kömmerling | REHAU | Schüco |
| Material | PVC | PVC | PVC | PVC |
| Profile depth | 84 mm | 88 mm | 86mm | 82mm |
| Chambers | — | — | 6 chambers | 7 chambers |
| Glass unit, max | up to 56 mm | up to 56 mm | 53mm | up to 52mm |
| Thermal (Uw) | ≤ 0.66 | ≤ 0.7 | 0.73 | 0.8 |
| Sound (Rw, dB) | ≈ 48 Rw(dB) | ≈ 50 Rw(dB) | ≈50 Rw(dB) | ≈47 Rw(dB) |
See all window profiles compared.
Open full comparisonLeave a Review
Find out what people are saying about it
No reviews yet. Be the first!
FAQs
Even if you are not building a certified "Passive House", this status guarantees the highest quality of execution. You get a product that has passed the world's most rigorous heat loss tests. This means minimal electricity bills (air conditioning/heating) and complete absence of drafts or "cold from the window".
Standard windows have two circuits. The third (middle) gasket in Cortizo A 84 divides the chamber between the frame and sash into two zones: "wet" and "dry". The hardware mechanisms are in the dry zone, which extends their service life, and the joint thermal insulation improves significantly.
The system looks solid and reliable, but not bulky thanks to Cortizo's refined proportions. However, it should be noted that the profile height (light opening) is slightly larger than standard systems, which is compensated by the ability to manufacture larger sashes.
At current energy prices in Europe, Passivhaus class windows are a high-ROI investment. The price difference compared to regular windows is recovered through reduced climate control costs. Additionally, such windows improve the property's energy efficiency rating, increasing its market value.
Thanks to the profile massiveness and the ability to install 56 mm glazing units, Cortizo A 84 is one of the quietest systems on the market. When using acoustic laminated glass, sound insulation reaches 48 dB, allowing complete isolation of a bedroom from airport or highway noise.
The sash weight with triple glazing can be significant. Before installation in older buildings, a specialist assessment of the opening condition is recommended. However, the A 84 system itself has the highest static rigidity and is designed for such loads, so the glass weight is not a problem for the window itself.
