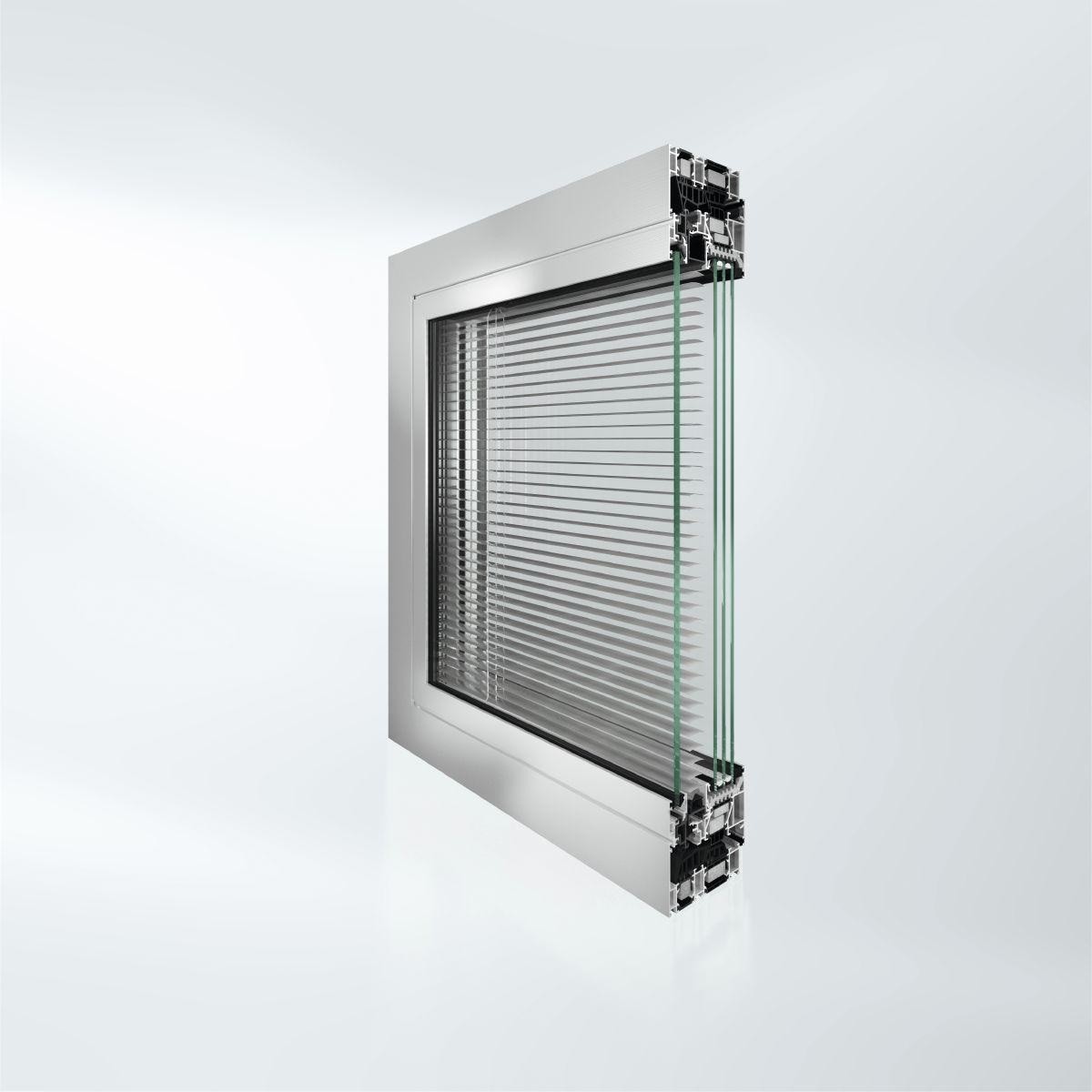

Schüco AWS 65 (Aluminium Window System) is the ideal entry level into the world of premium aluminum glazing. The system combines the elegant appearance inherent to metal with respectable thermal insulation characteristics thanks to an extended thermal break zone.
Unlike PVC windows, AWS 65 allows creating structures of enormous sizes with very narrow frames. This is the choice for modern architecture where maximum light, clean lines, and reliability unattainable for PVC profiles are important.
Technical Specifications

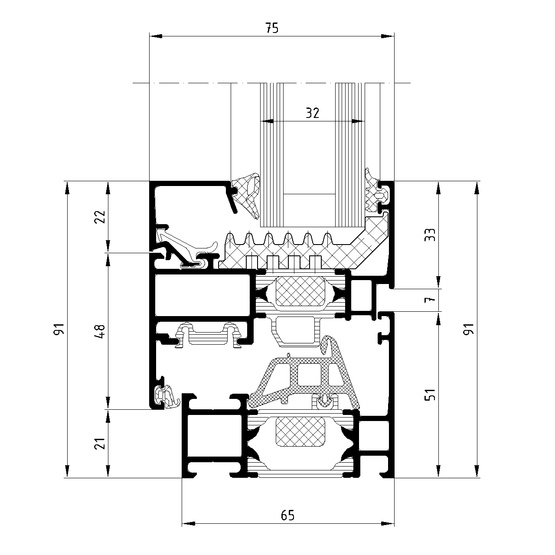

Aluminum standard. Universal system with 65 mm installation depth for stylish and durable solutions.
System structural parameters:
Glazing options:
Certified characteristics:
Aluminum standard. Universal system with 65 mm installation depth for stylish and durable solutions.
For a standard 2-sash tilt-and-turn window (1200 × 1400 mm) with basic double-glazed unit.
Alternative solutions from other manufacturers
Side by side
How Schüco AWS 65 stacks up against the closest matches from other brands.
| Specification | Schüco AWS 65This profile | Cortizo COR 60 | WDS 5S | Rehau Euro-design 70 |
|---|---|---|---|---|
| Brand | Schüco | Cortizo | WDS | REHAU |
| Material | Aluminium | Aluminium | PVC | PVC |
| Profile depth | 65mm | 60 mm | 60mm | 70mm |
| Chambers | — | — | 5 chambers | 5 chambers |
| Glass unit, max | up to 55mm | up to 48 mm | up to 32mm | up to 40mm |
| Thermal (Uw) | 1.4 | ≤ 1.3 | 1.4 | 1.3 |
| Sound (Rw, dB) | ≈47 Rw(dB) | ≈ 44 Rw(dB) | ≈38 Rw(dB) | ≈43 Rw(dB) |
See all window profiles compared.
Open full comparisonLeave a Review
Find out what people are saying about it
No reviews yet. Be the first!
FAQs
No, this is "warm" aluminum. Inside the profile are polyamide inserts (thermal bridges) that interrupt the cold flow. The Uf coefficient ≈ 1.9–2.2 allows using these windows in residential spaces, though they are slightly less warm than 75-90 mm deep systems.
Yes, this is the main advantage of aluminum. Schüco AWS 65 allows sashes up to 2.5 meters high and weighing up to 160 kg, while profiles remain narrow and elegant.
Aluminum is coated by powder coating or anodizing. This coating becomes part of the metal, it doesn't fade in the sun, doesn't crack, and is scratch-resistant. Any RAL colors and structural finishes are available.
The main difference is installation depth (65 mm vs 70/75 mm) and thermal insulation level. AWS 65 is slightly "colder", so for energy-efficient cottages 75.SI is more common, while the 65 series is for offices, verandas, vestibules, or apartments in warm climates.
The system is certified up to RC3 burglar resistance class. Strong metal and specialized hardware with mushroom cams make these windows a serious obstacle for intruders.
Yes, the system is fully compatible with Schüco TipTronic hardware. Windows can open from a button, remote, or smartphone, as well as automatically for ventilation via CO2 sensors.
